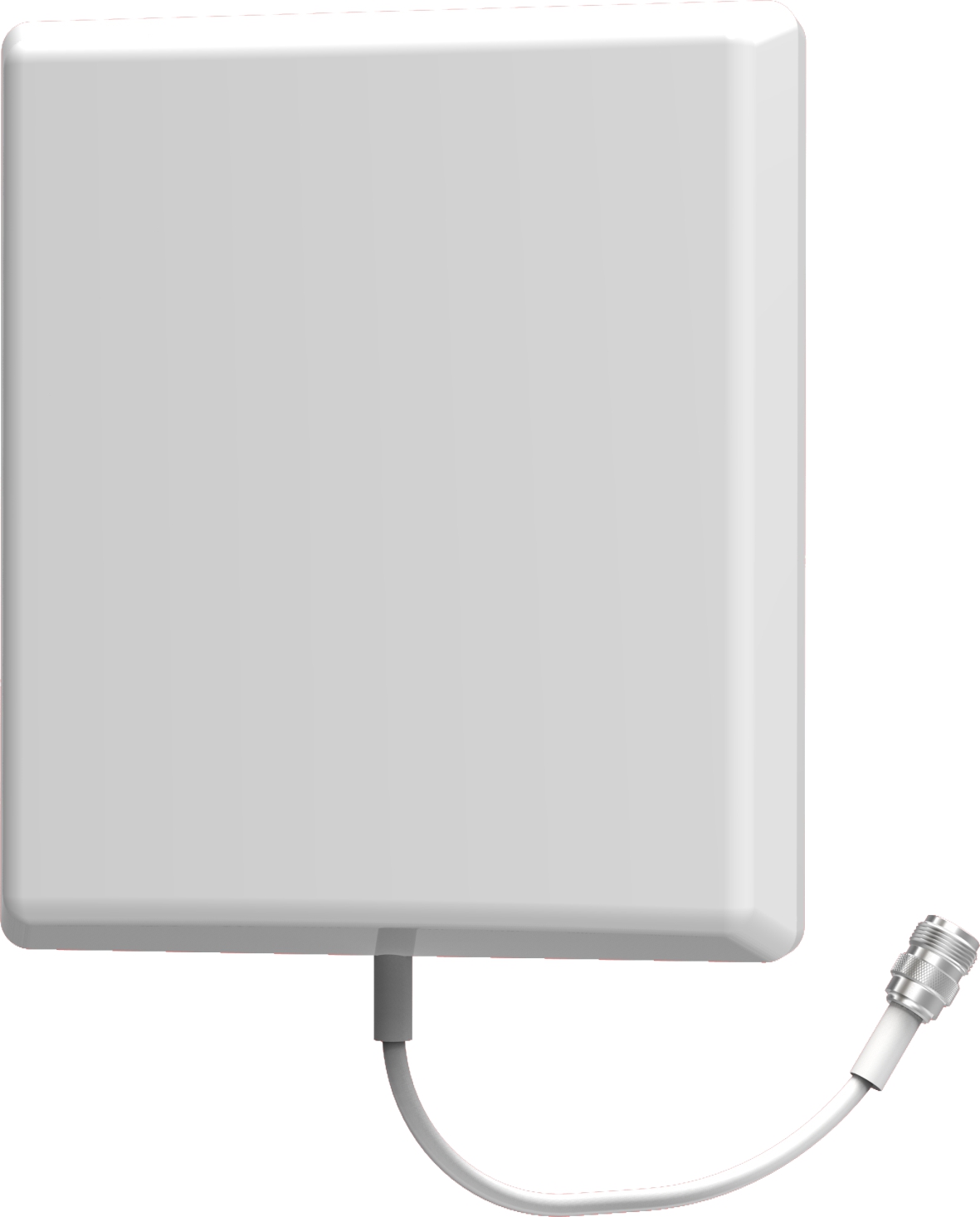

GD-CV0802
    Publish time 2019-07-01 15:09
GD-CV0802
Model No GD-CV0802
Frequency Range 698-806/806-960/
1710-2500/2500-2700 MHz
VSWR ≤1.7
Impedance
 50 Ω
Antenna Gain 6/7/8/6 dBi
Polarization Vertical
Horizontal Beam Width
(half-power)
 90/90/75/75 °
Vertical Beam Width
(half-power)
 65/60/55/50 °
Front-back Ratio
 ≥21 dB
Lightning Protection DC Ground
Max.Power 100 w
Connector N-Female
Dimension 210x180x45 mm
Weight
 0.45 Kg
Rated Wind Speed 150 km/h
Radome Material ABS
Cable 300 mm
Diameter of Installation Pole
 Φ30-Φ53 mm
